Synchronous signal splitting host
The satellite synchronization signal distribution product consists of two parts: the main unit and the slave unit. It can introduce synchronization signals via at least one antenna, which are then amplified by the main unit and slave unit and distributed to multiple BBUs. This product is suitable for co-located BBU equipment rooms, large venues, subway tunnels, and similar scenarios

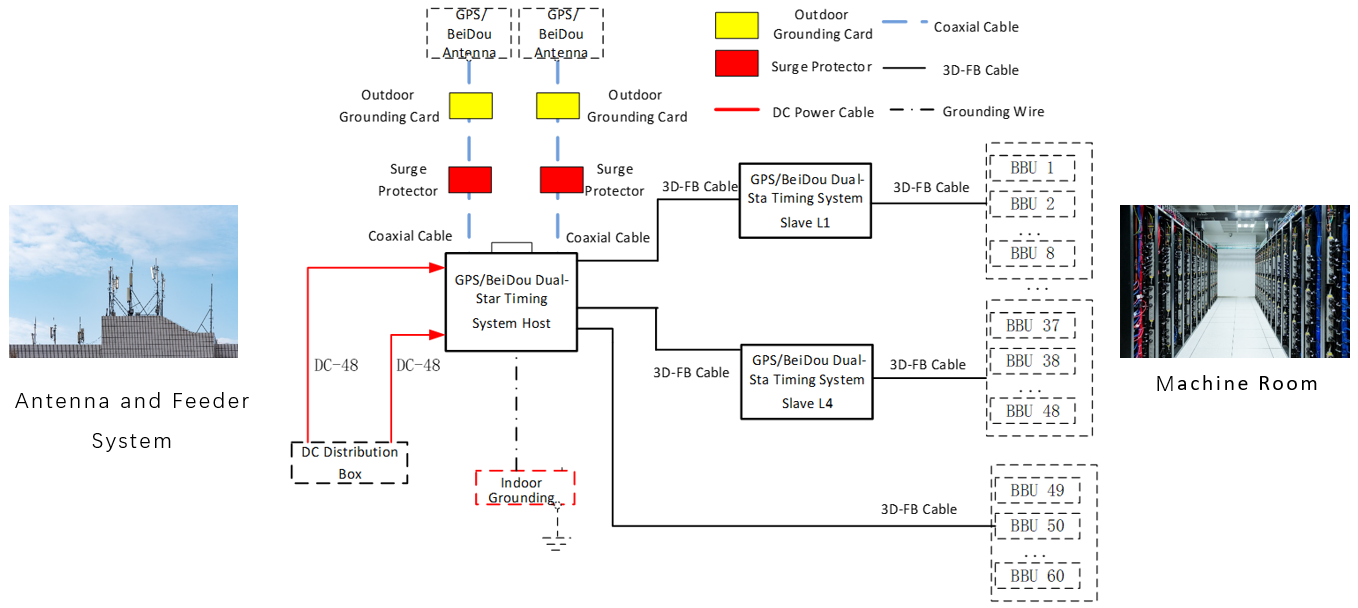

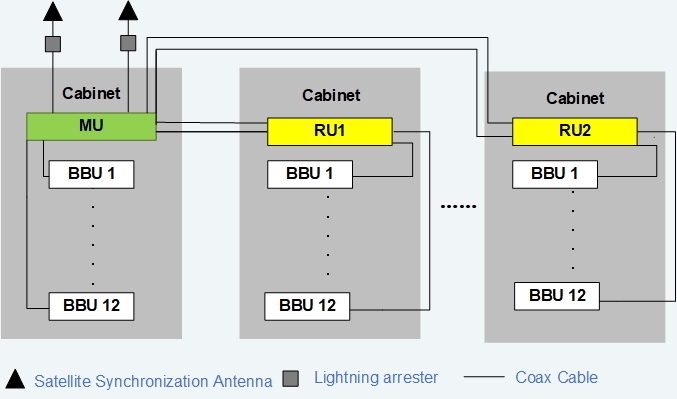

Networking
Product Features
Manageable and Controllable
Easy Capacity Expansion
Eases Site Selection
Cost-Effective
High Reliability: Antennas
Applicable Scenarios
  • BBU Equipment Room
  • Stadium
  • Tunnel
Performance Index
项目 参数
Operating Frequency Band  1.1~1.6 GHz,Customizable
Rated Output Power  -25dBm
Maximum Gain  30dB
Number of Output Ports  12
Number of Cascade Ports  4
Volume ≤5L(1U Chassis)
Weight <4KG
